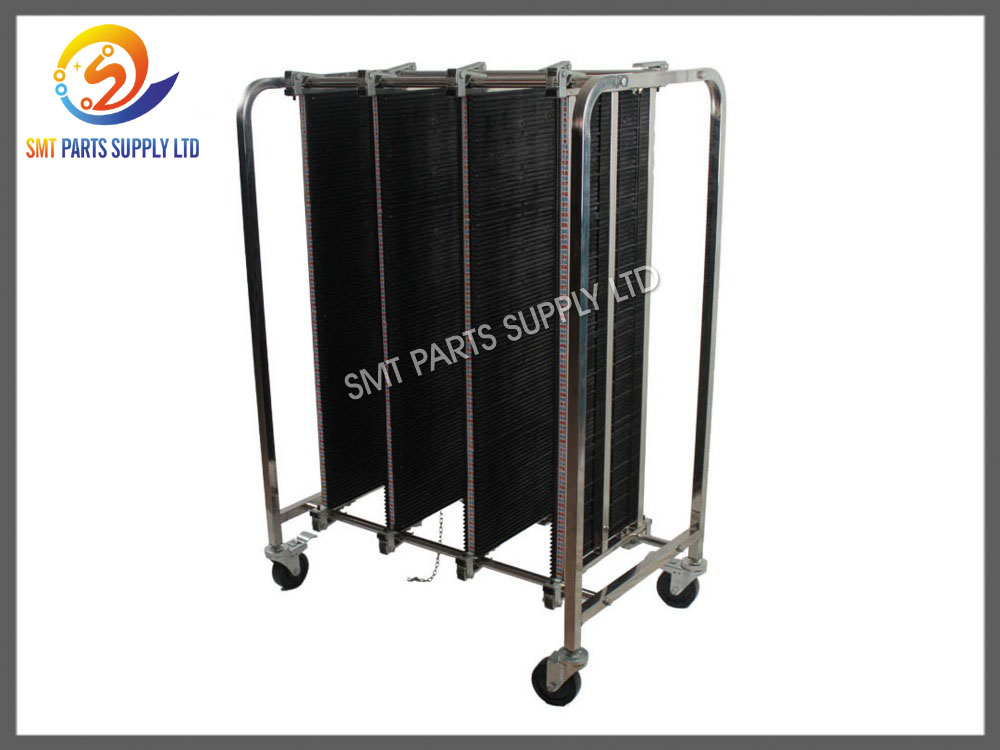

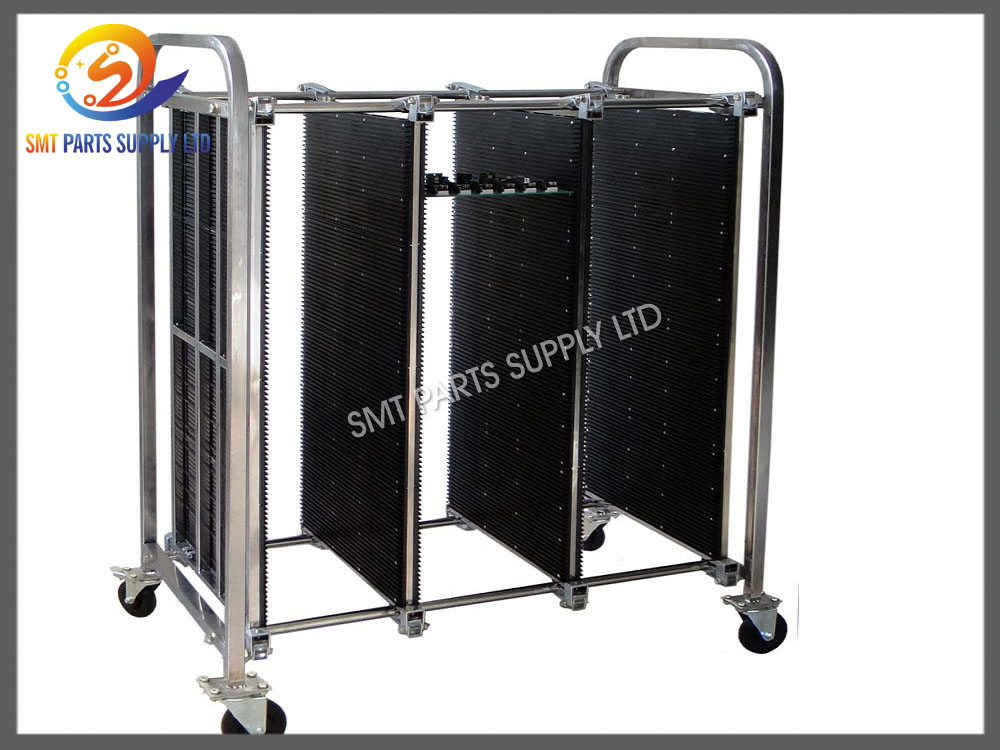

• Product Specifications:

1. External dimensions: L900*W700*H1260mm±5mm
2. number of columns available: 3 columns
3. Each column can be stored PCB plate: 100-200PCS
4. guide groove: Vertically insert
A. groove depth: 5mm
B. Width: 5mm
C. slot length: 630mm
D: layer distance: 10mm
5. Surface resistance: 106-109Ω
6. Main Material: 201 stainless steel pipe and PP conductive plate
7. Material Specifications: 25 * 25,25 * 13, O 22
8. Bearing weight: 150KG
9. each bearing weight: 50KG
10. Casters Dimensions: 4 inches of rubber conductive wheels
11. anti-static measures: conductive castors and conductive chain
12. Tube Thickness: 0.9mm ± 8c
13.PP Thickness: 10mm
14. average length of each column can be put: 280mm ± 10mm
15. flapper practice: injection
16. Affordable temperature: 60 ℃

• Packing method:

1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;

• Shipping way:

1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;

We can supply you the following size

• 350 type ,( PCB Maximum length is 350mm)

1.PCB capacity 200pcs
2.PCB capacity 300pcs
3.PCB capacity 400pcs
4.PCB capacity 500pcs

• 460 type ,( PCB Maximum length is 460mm)

1.PCB capacity 200pcs
2.PCB capacity 300pcs
3.PCB capacity 400pcs
4.PCB capacity 500pcs

• 530 type ,( PCB Maximum length is 530mm)

1.PCB capacity 200pcs
2.PCB capacity 300pcs
3.PCB capacity 400pcs
4.PCB capacity 500pcs

• 630 type ,( PCB Maximum length is 630mm)

1.PCB capacity 200pcs
2.PCB capacity 300pcs
3.PCB capacity 400pcs
4.PCB capacity 500pcs
