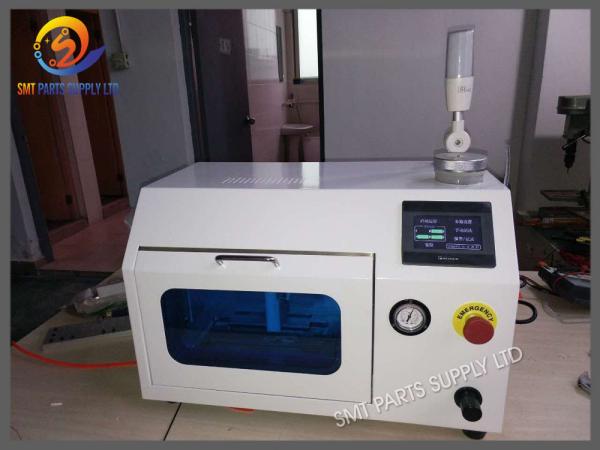

SMT Automatic Nozzle High Pressure Water Jet Cleaning Machine
1.The appearance of streamlined design, beautiful and generous.
2.30 nozzles are used at the same time to achieve high efficiency and energy saving.
3.The whole inspection window is convenient for maintenance and operation.
4.Contact with water parts are all made of 304 stainless steel, rust proof, corrosion resistant, firm and stable.
5.Humanized design, in the external button to achieve a key start and stop.
6.It adopts touch screen +PLC distributed control, and the performance is stable and reliable.
7.Easy to operate, friendly interface, and can switch anytime in English and Chinese.
8.With misoperation alarm and emergency braking system, overload protection system is provided.
9.The use of environmentally friendly, pollution-free industrial pure water (HP value 5-7 soft water).
10.The centralized collection of waste is convenient for maintenance and maintenance.
| Whole machine parameter: | |
| Size (L*W*H) | 598×396×365 MM |
| Power supply (two-phase, two-wire) | 2P2W,220VAC,50/60Hz, 20A |
| Power supply | 250W |
| Gas pressure | 0.5 - 0.6MPa |
| Weight | 40KG |
| Electrical control part parameter: | |
| Total power | 200W |
| control mode | Touch screen+PLC |
| Gas source | Pure compressed air |
| Injection pressure | 0.4 MPa |
| Air consumption | Lower than 280NL/min |
| Liquid type | Industrial purified water |
| Liquid consumption | 300cc/H |
| Liquid storage capacity | 800cc |
| Intake pipe / drain pipe | ￠8 / ￠6 |
| Specification for suction nozzle trays | 30pcs nozzle |
| Specification for cleaning suction nozzle | 0201 - 2512 (inch) |
| Noise | 35-60 dB |
1.Can be cleaned of a variety of difficult to clean impurities, dirt
2.Prolong the service life and reduce the cost of suction nozzle
3.Non destructive suction nozzle surface coating
4.Lossless reflector
5.Use harmless clean water
6.Automatic continuous cleaning and drying design (400 nozzles can be cleaned per hour).
7.Automatic programming, liquid crystal display, easy to operate.
8.Apply to PNANASONIC, FUJI, YAMAHA, JUKI, SIEMENS, SAMSUNG, UNIVERSAL, PHIL, SANYO, SONY, CASIO and other brand mounting machine.
|
|
